Blue Sea Systems

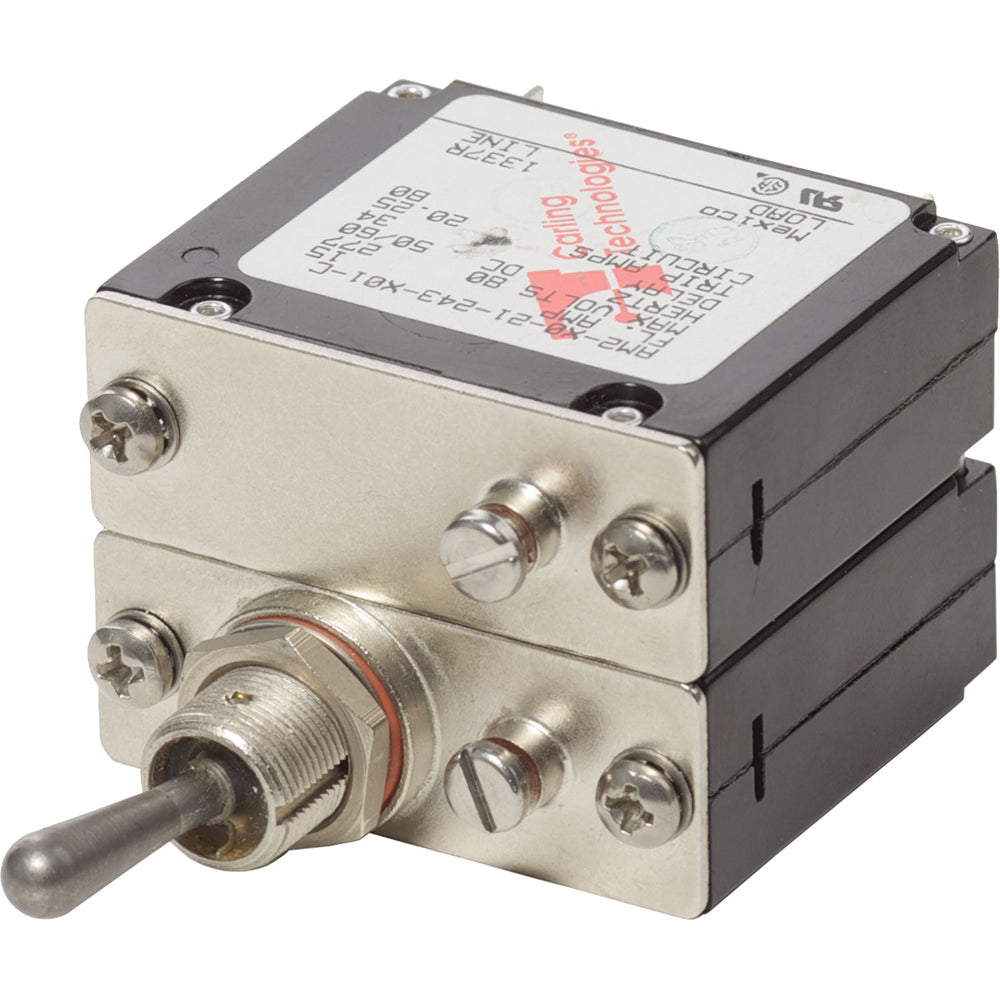

Blue Sea 7312 COTS Military Grade A-Series 15 Amp [7312]

Blue Sea 7312 COTS Military Grade A-Series 15 Amp [7312]

Precio habitual $94.11
Precio habitual Precio de oferta $94.11
Oferta Agotado

7312 COTS Military Grade A-Series 15 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

  • Amperage: 15A
  • Actuator Style: Metal Toggle
  • Poles: 2
  • Max Voltage: 277V AC, 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic - Trip Free
  • Interrupt Capacity: 1500 A AC, 7500A DC
  • Min Operating Temp: -40°C
  • Max Operating Temp: 85°C
  • Mounting Boss: 1/2-32 Hex Nut SS
  • Mounting Nut Torque: 30"-lb
  • Screw Terminal Torque: 14"-lb
  • Switching Cycles: 6000 Electrical/4000 Mechanical
  • Terminal Screw: #10-32 SS
  • Weight: 0.13lb (0.06 kg)
  • UL 1077

Specifications:

  • Amperage: 15a
  • Box Dimensions: 2"H x 3"W x 4"L WT: 0.35 lbs
  • UPC: 632085173128
