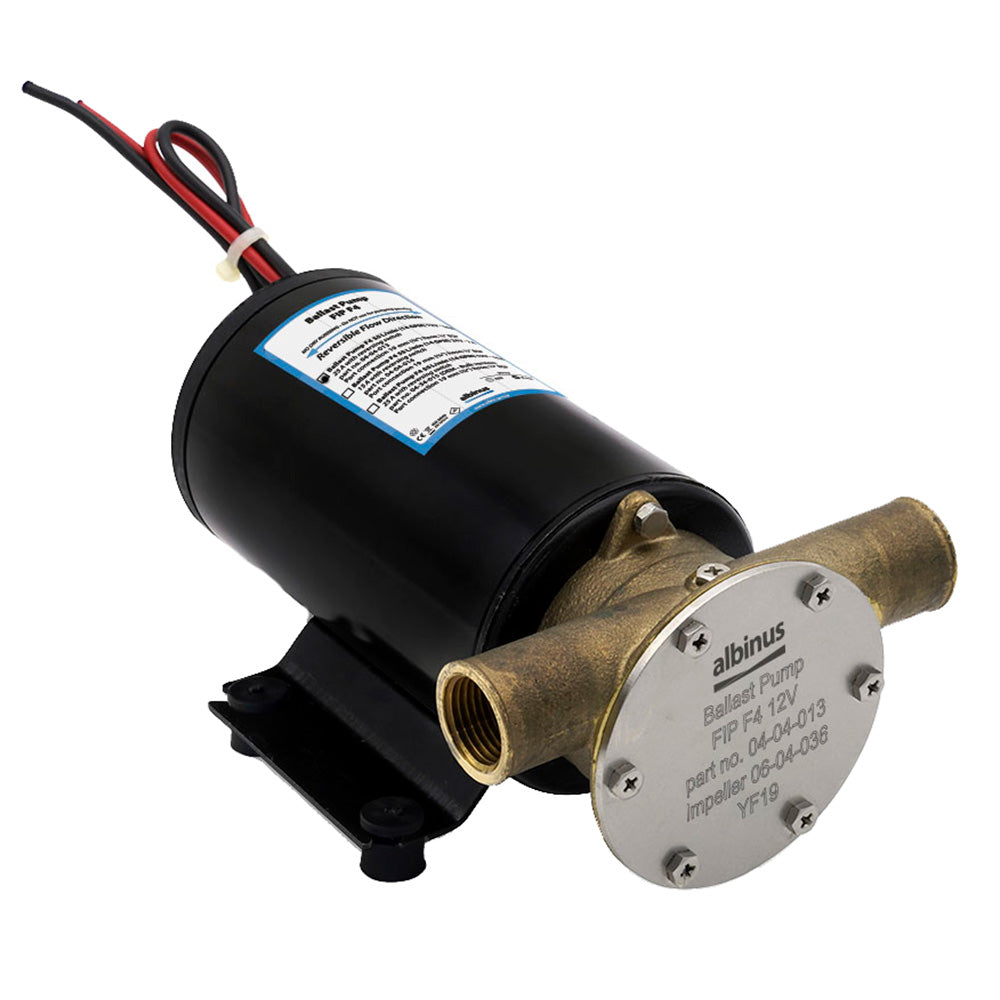

Albin Group Ballast Pump FIP F4 12V [04-04-013]

Albin Group Ballast Pump FIP F4 12V [04-04-013]

Regular price $300.00
Regular price Sale price $300.00
Sale Sold out

Ballast Pump FIP F4 12V

DC 12V F4-size ballast pump with a capacity of 55 L/min (14.25 GMP). This pump is used for ballast pumping of water between tanks.

Features:

  • Pump body in brass, stainless steel shaft, premium ballast MC19 compound impeller, and seawater-resistant shaft seal
  • Self-priming up to a 3m vertical lift
  • Reversible flow direction
  • 25A fuse reversing
  • 16A normal duty
  • Protected against ignition by surrounding flammable gases, ISO 8846
  • Replacement premium ballast impeller in MC19 compound, PN 06-04-036

Specifications:

  • Port Connections: 3/4 in. (19mm)
  • Hose Connection: 1/2" threaded BSP
  • Weight: 0,8 kg/1 Lb
  • Dimensions (L x H x W) (mm/in): 180/7 x 90/3.5 x 120/4.7
  • Type: Reversible flow direction by changing polarity
  • Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

Specifications:

  • Gallons Per Minute: 14
  • Volts: 12v
  • Box Dimensions: 5"H x 6"W x 10"L WT: 6.7 lbs
