Blue Sea Systems

Blue Sea 2312, 150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover [2312]

Blue Sea 2312, 150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover [2312]

$56.16
$56.16
Sale Sold out

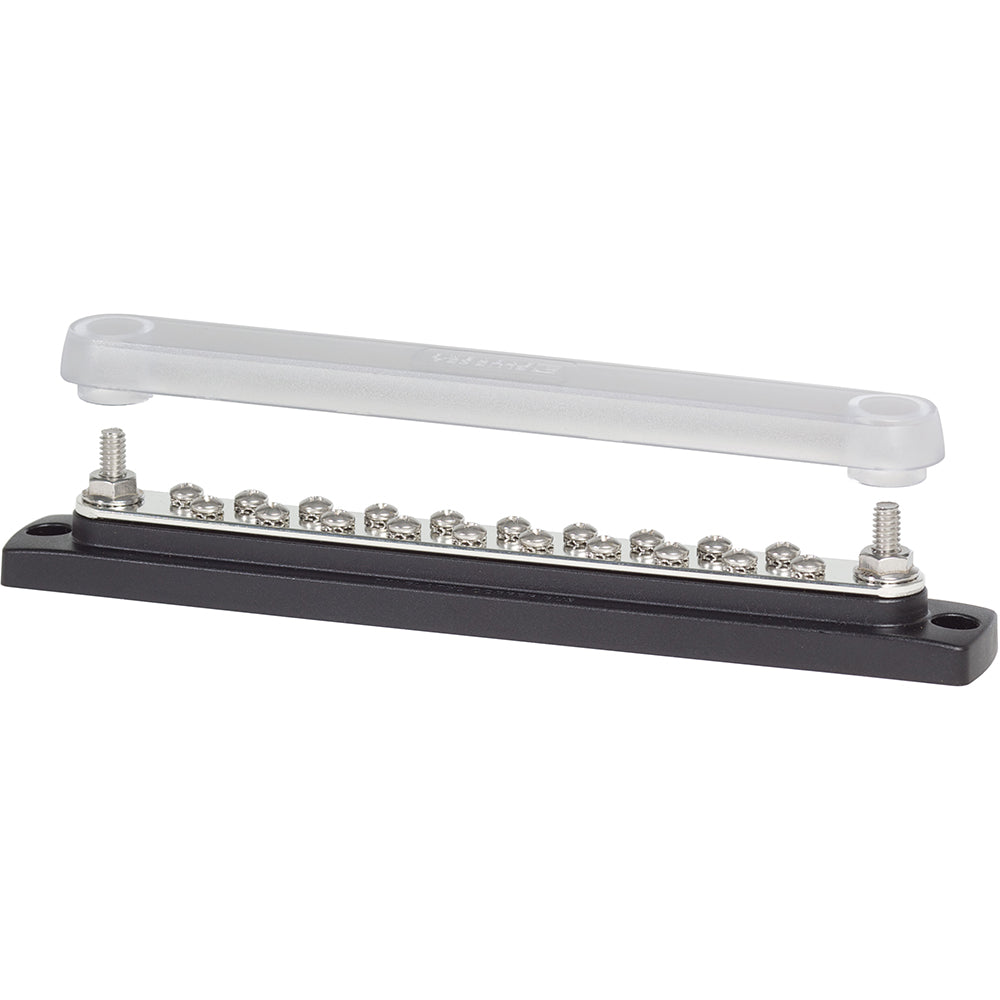

150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover

PN:   2312

  • Stud design provides direct terminal to bus contact for low resistant connection
  • Stainless steel studs and screws allow high torquing for excellent electrical contact
  • Tin-plated copper bus for maximum conductivity and resistance to corrosion
  • UL 94-VO rated (self extinguishing) base material resists high heat
  • Press on insulating cover attaches to studs and allows unobstructed wire access
  • Raised bus provides easy access to multiple wires on a single screw


Continuous Amperage 130 Amperes AC
150 Amperes DC
Maximum Voltage Rating 300 Volts AC
48 Volts DC
Bus Material Tin-Plated Copper CDA 110/UNS11000
Base Material Glass Reinforced Polycarbonate
Cover Material Polycarbonate
Studs Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal
Screws Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal
Weight 0.58Lb
