Blue Sea Systems

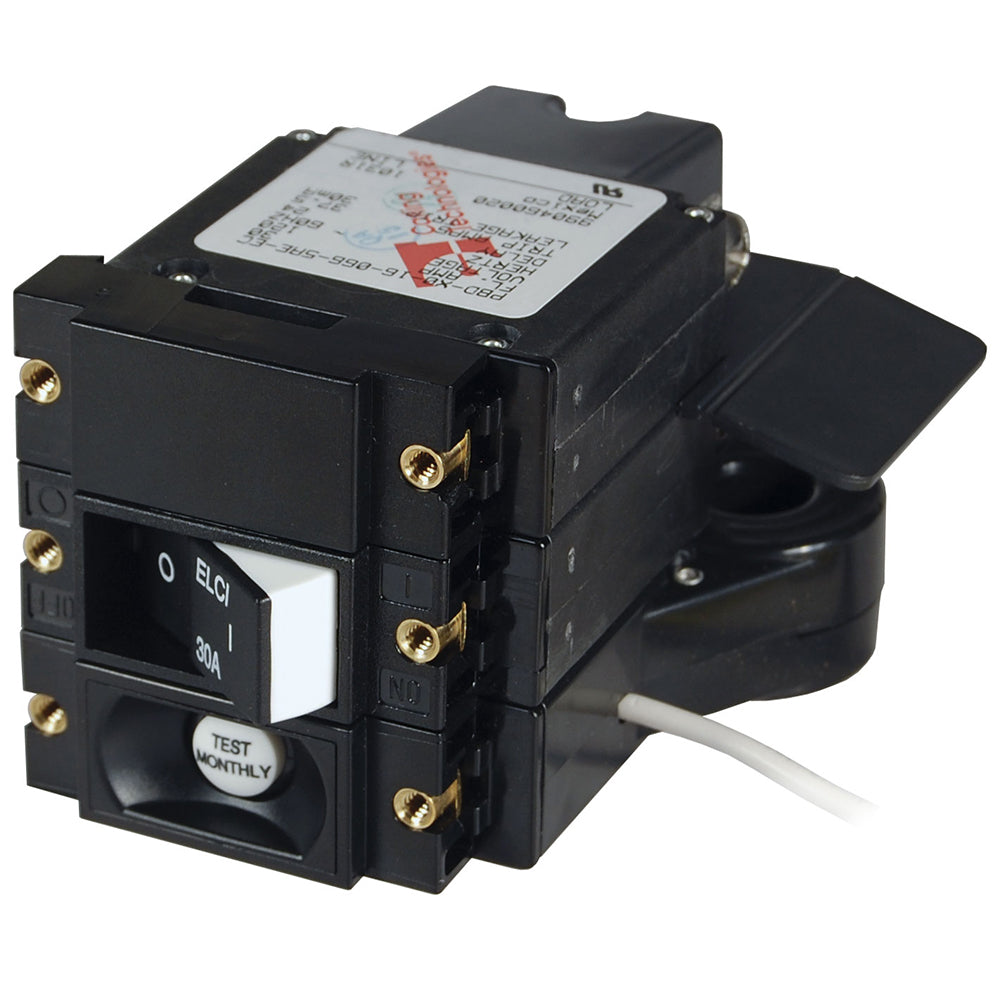

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker [3102100]

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker [3102100]

Regular price $429.57
Regular price Sale price $429.57
Sale Sold out

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker

Features:

  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 30A
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Ignition Protected: Yes
  • Max Voltage: 240VAC/120VAC per pole
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Max Operating Temperature: 65 degrees C
  • Leakage Trip Amps: 30mA
