Trident Marine

Trident Marine 1-1/2" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black [149-1126]

Trident Marine 1-1/2" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black [149-1126]

Regular price $414.45
Regular price Sale price $414.45
Sale Sold out

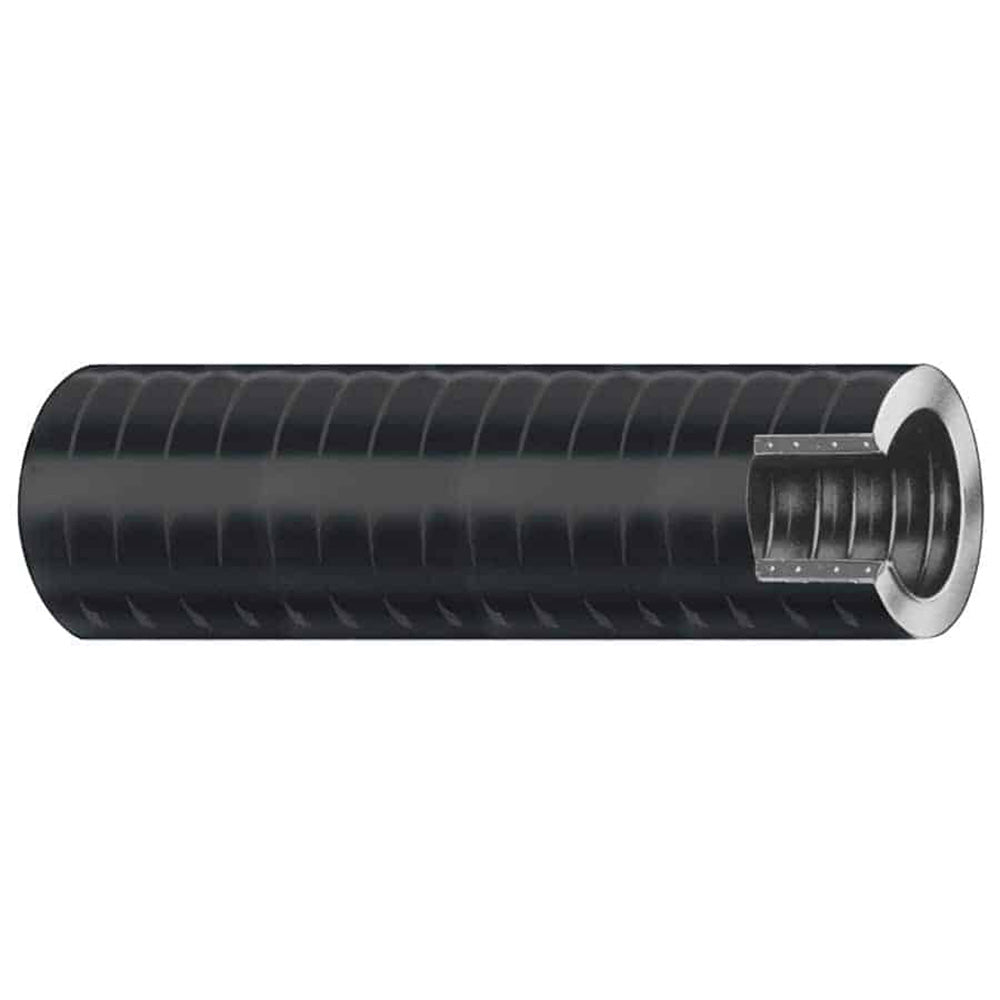

1-1/2" x 50' VAC XHD Bilge & Live Well Hose - Hard PVC Helix - Black

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

  • 149 series of hoses is extra flexible

Application:

  • Bilge and live well hose

Specifications:

  • Tube & Cover: Hard PVC helix
  • Color: Black
  • Reinforcement: PVC Helix
  • Temperature Range: 10°F-120°F (-12°C-48°C)
  • Boxed: 50ft. / (15.2m)
  • Inner Diameter: (inch) 1-1/2" / (mm) 38.1
  • Outer Diameter: (inch) 1.792" / (mm) 45.5
  • Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
  • Weight: (Lb./ 50 ft.) 22 / (Kg/m) 9.98
  • Bend Radius: (inch) 4" / (mm) 101.6

*Burst Pressure is 4 x Working Pressure

Specifications:

  • ID Diameter (inches): 1-1/2"
  • Box Dimensions: 8"H x 23"W x 23"L WT: 23.2 lbs
  • UPC: 704917010472
