Wichard HR Snap Shackle - Large Bail - Length 140mm [02377]

Wichard HR Snap Shackle - Large Bail - Length 140mm [02377]

Regular price $231.70
Regular price Sale price $231.70
Sale Sold out

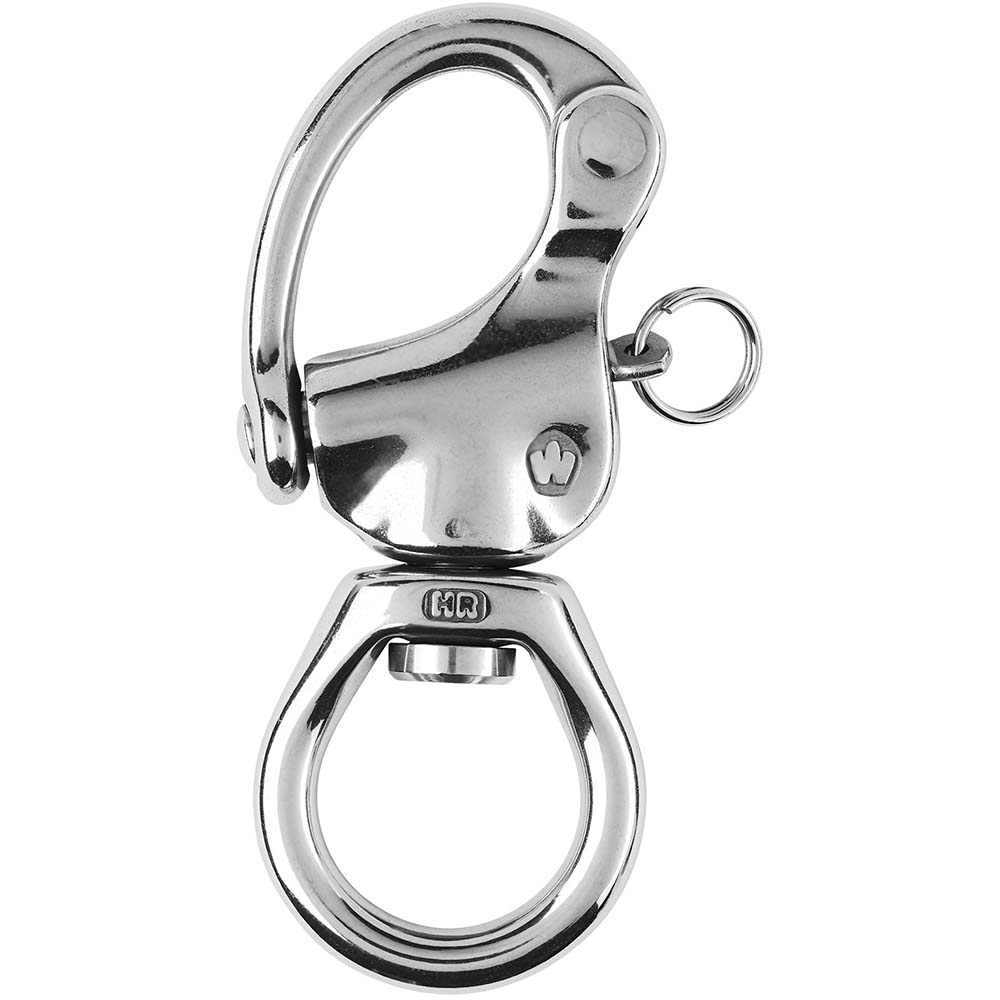

HR Snap Shackle - Large Bail - Length 140mm

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
  • The large eye allows attaching several ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Length (inch) 5-33/64"
  • Working load (lb) 6170
  • Breaking load (lb) 16530
  • Weight (lb) 0.877

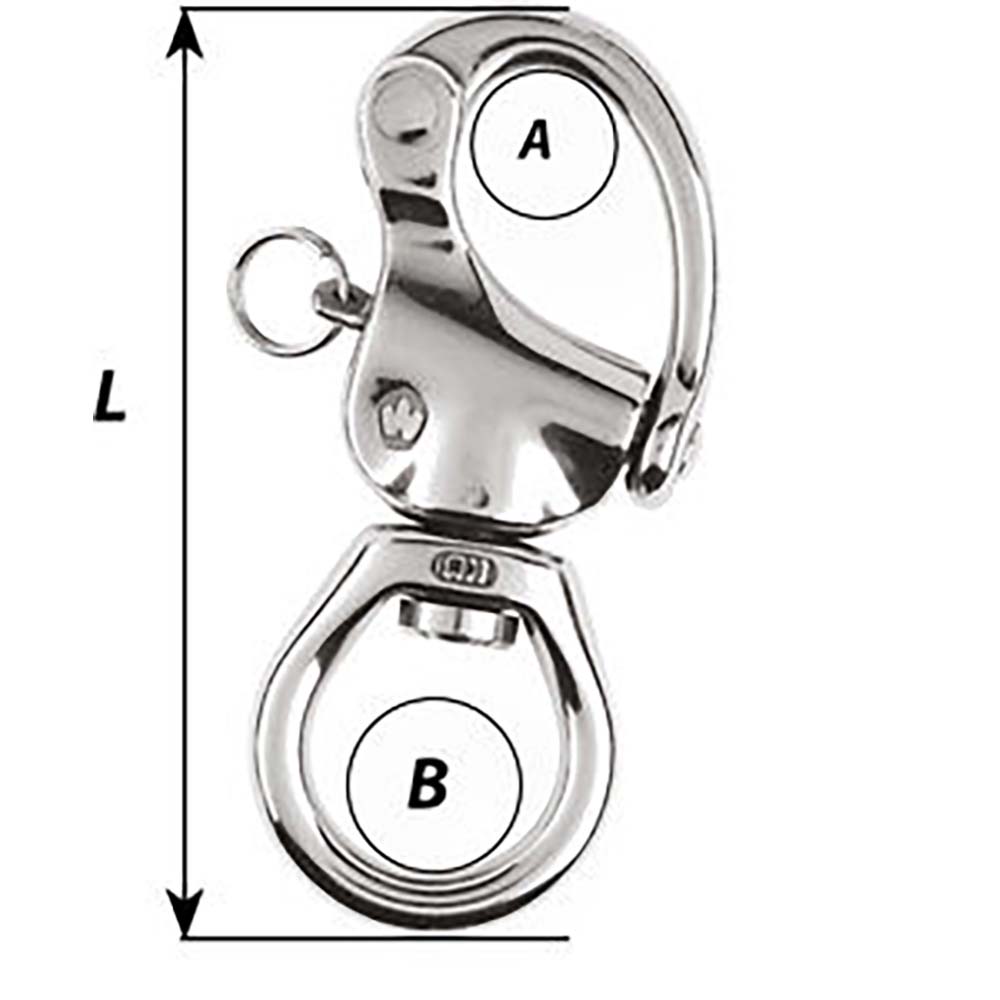

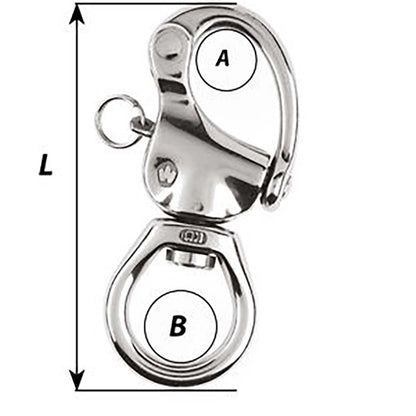

Dimensions (see 2nd image):

  • A (inch) 1-1/32"
  • B (inch) 1-3/8"
